72Racing 2NH 380mm Front Caliper Bracket Kit - BMW F87 M2 Competition - 18" Wheel Conversion
Tax excluded. Shipping calculated at checkout
Description
Run selected 18-inch wheels while retaining the factory BMW 2NH six-piston front calipers. The 72Racing 2NH 380mm Front Caliper Bracket Kit repositions the OEM front calipers for a compatible 380mm front disc conversion, reducing the factory 400mm brake package diameter and creating the additional inner-barrel clearance needed by suitable 18-inch wheels.
This conversion is aimed at track and fast-road BMW F87 M2 Competition builds where 18-inch wheels are preferred for tyre availability, tyre cost, sidewall compliance and reduced wheel/tyre mass.
Key features

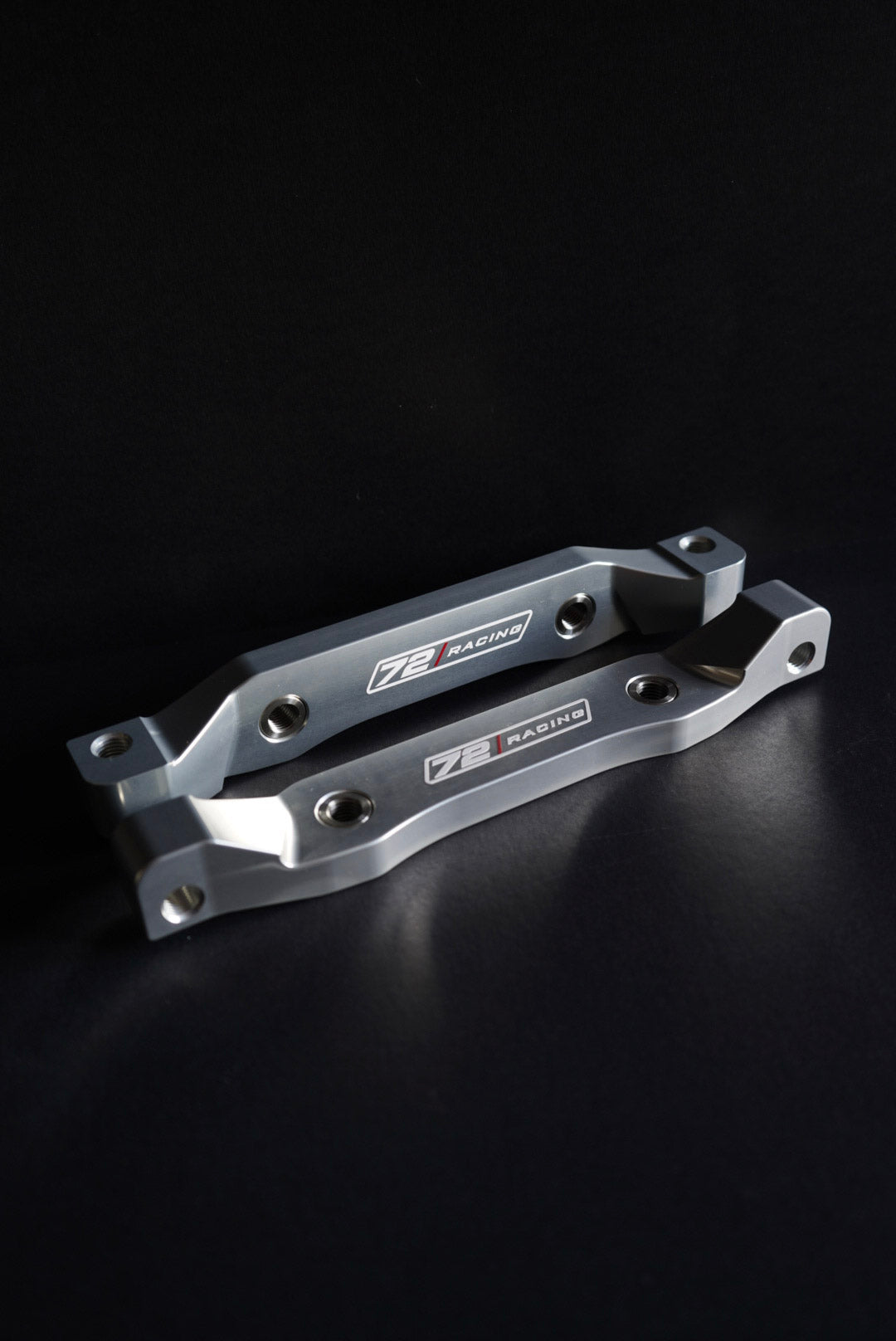

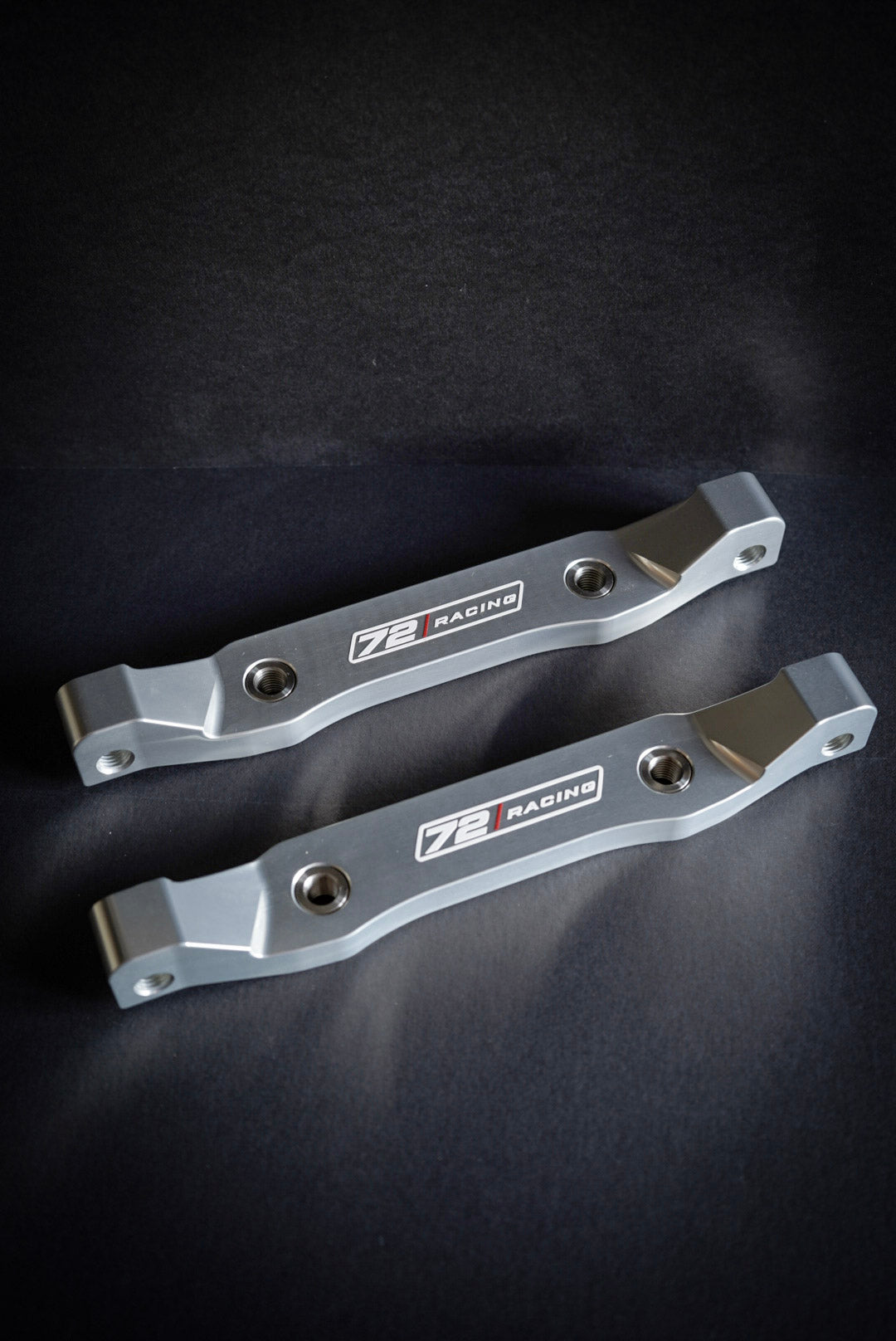

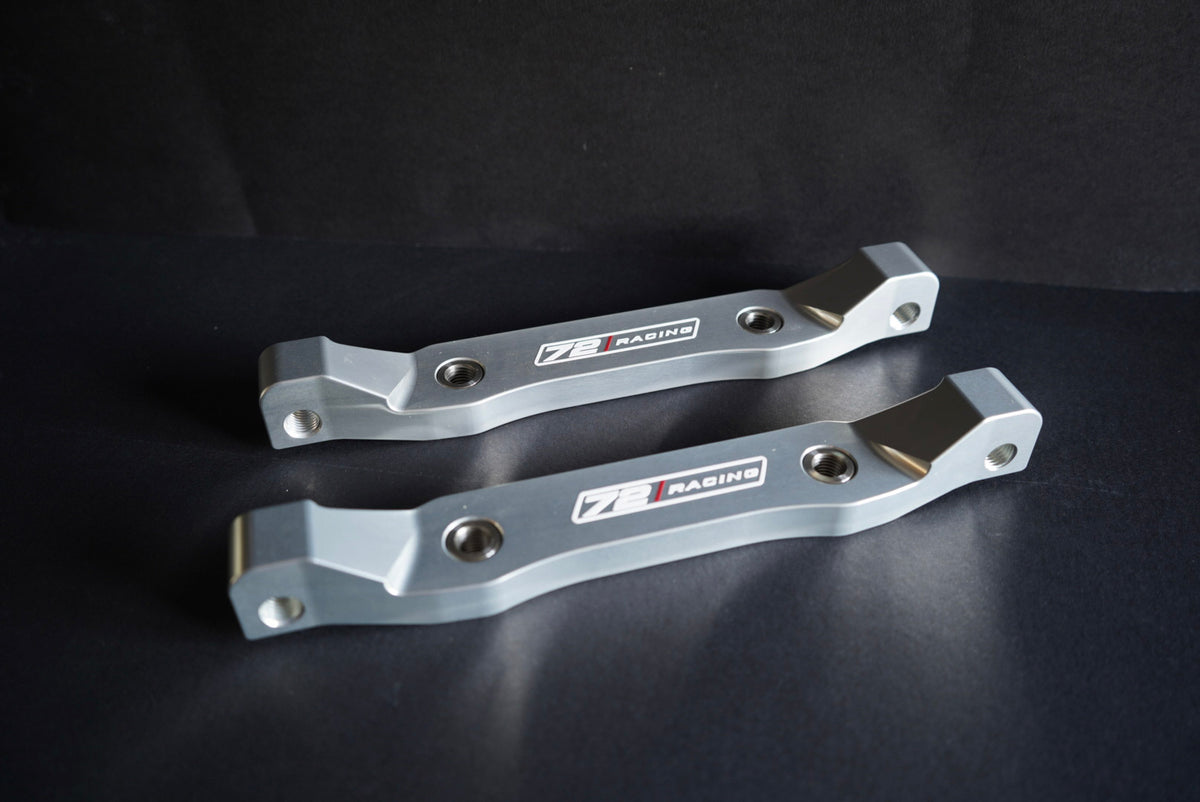

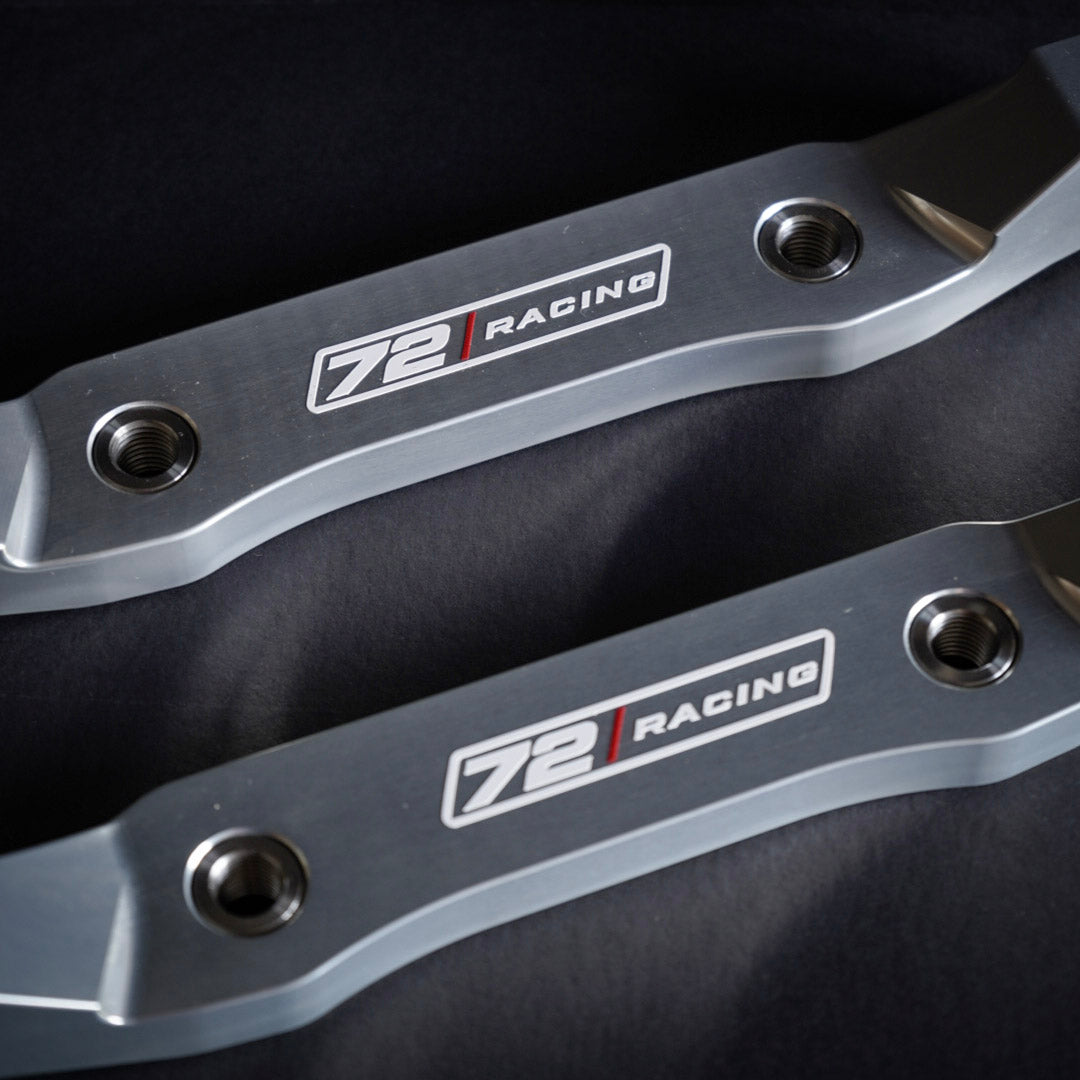

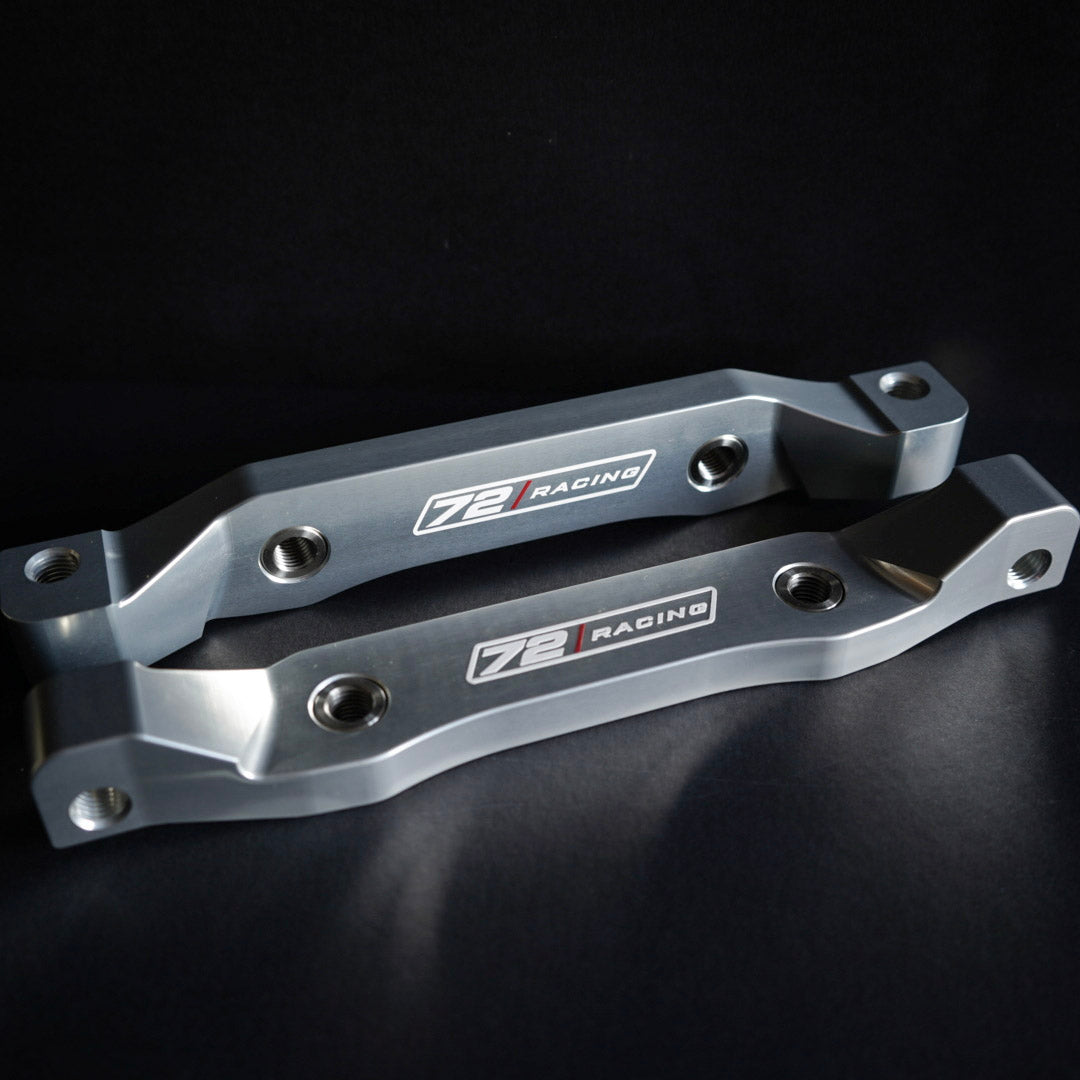

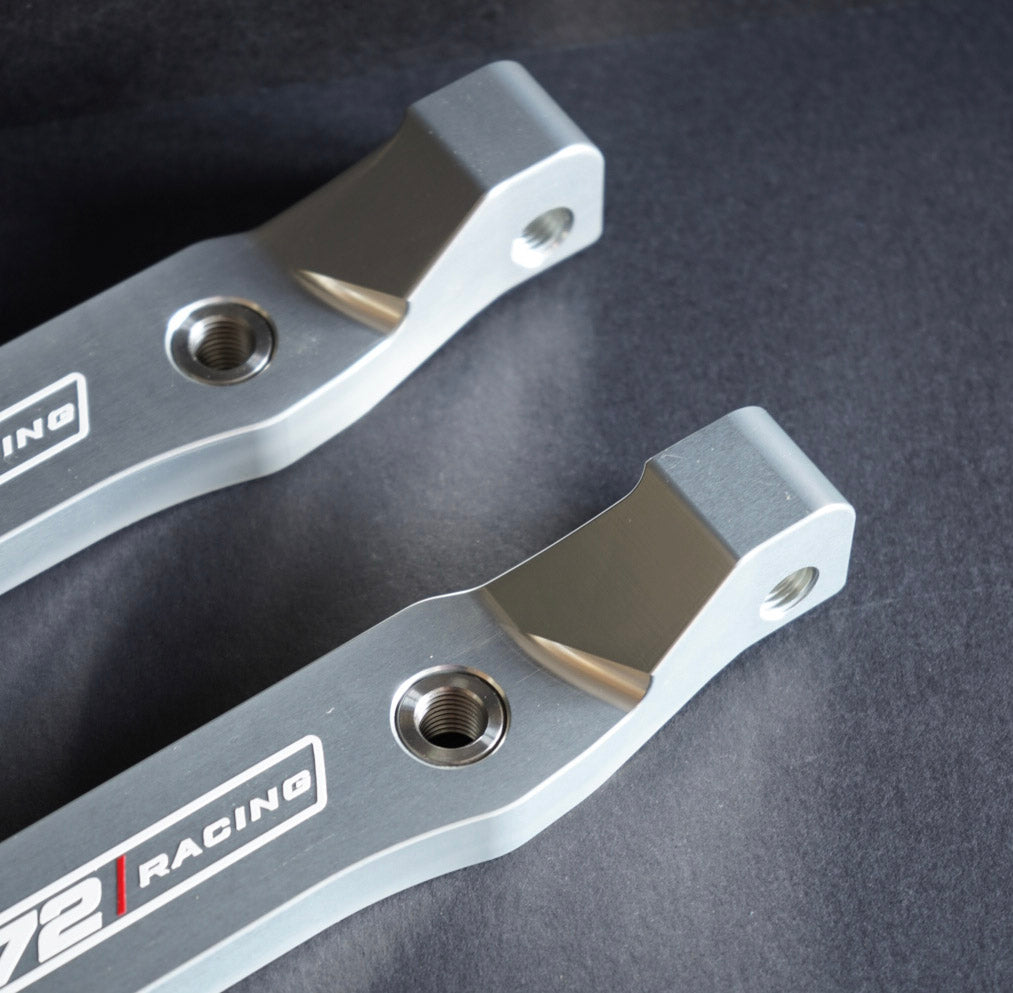

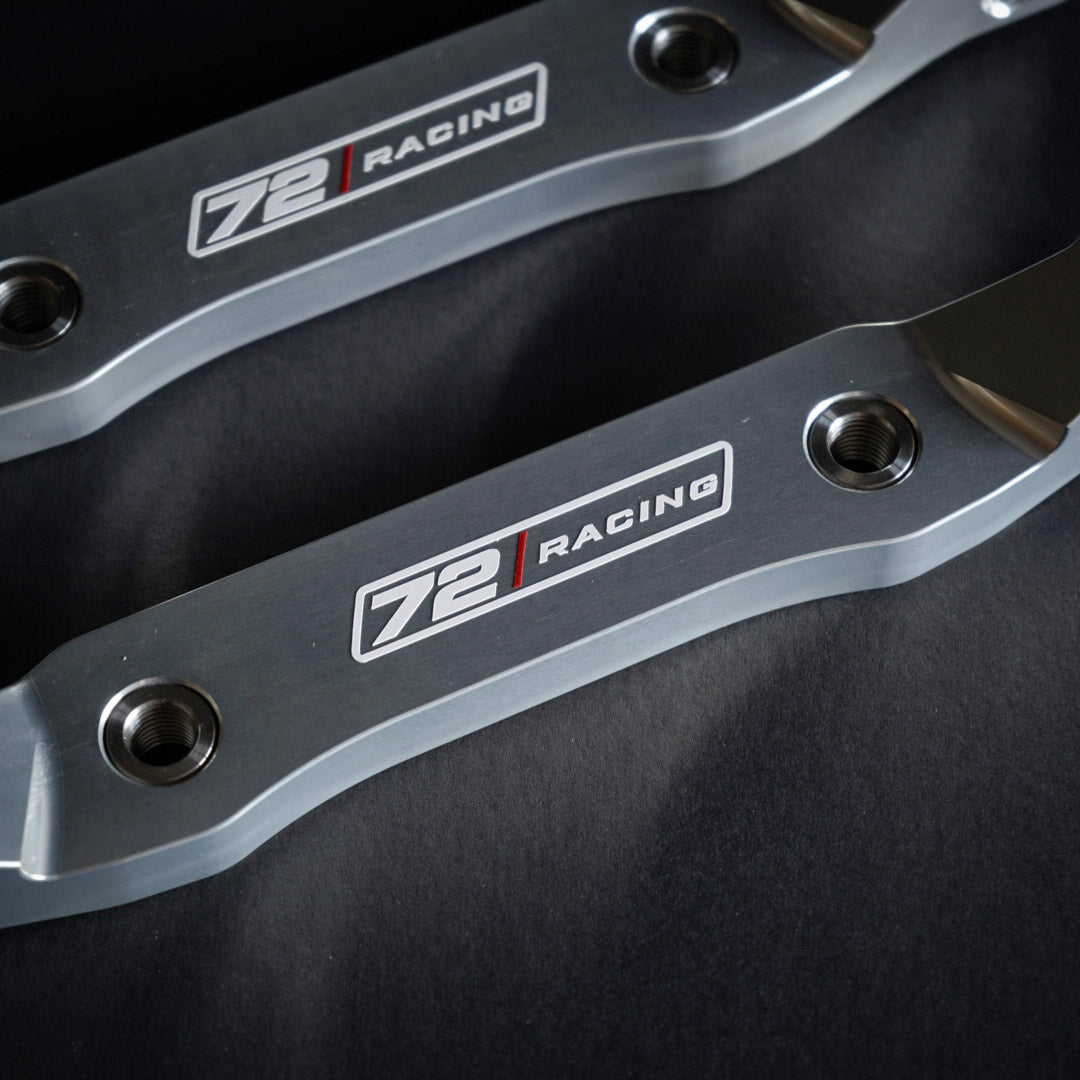

- Pair of 72Racing front caliper conversion brackets
- Retains the factory BMW 2NH six-piston front calipers
- Converts the front brake package from 400mm to a compatible 380mm disc setup
- Opens up selected 18-inch wheel fitments
- Designed for BMW F87 M2 Competition with factory 2NH brakes
- Ideal for track, sprint and fast-road builds
Vehicle fitment
- BMW F87 M2 Competition
- Factory option: 2NH M Sport brakes
- Factory front brake: 400x36mm disc with six-piston fixed caliper
Not suitable for the standard F8X blue-caliper 380mm front brake system.
Required front discs
The brackets must be used with the correct 380mm front discs designed for this six-piston caliper conversion. Standard BMW F8X 380x30mm front discs must not be assumed to be compatible. Confirm the exact disc specification before installation.
Confirmed APEX 18-inch wheel clearance
Wheel diameter alone does not determine clearance. Inner-barrel shape and drop-centre depth are critical. APEX has physically tested a 380mm six-piston F87 conversion and published the following results.
Clears without a spacer in the tested setup
- APEX SM-10: 18x9 ET30, 18x9.5 ET35, 18x9.5 ET22, 18x10 ET25
- APEX VS-5: 18x9 ET30, 18x9.5 ET35, 18x9.5 ET22, 18x10 ET25
- APEX ARC-8: 18x9.5 ET22, 18x10 ET25
- APEX EC-7: 18x9.5 ET22, 18x10 ET25
- APEX VS-5RS: 18x9 ET30, 18x9.5 ET35, 18x9.5 ET28, 18x9.5 ET22, 18x10 ET25
- APEX SM-10RS: 18x9 ET30, 18x9.5 ET22, 18x10 ET25
- APEX EC-7RS: 18x9 ET30, 18x9.5 ET35, 18x9.5 ET22, 18x10 ET25
- APEX ARC-8RT: 18x9.5 ET22, 18x10 ET25
- APEX ML-10RT: 18x9.5 ET22, 18x10 ET25
- APEX VS-5RE: 18x10 ET25
- APEX SM-10RE: 18x10 ET25
Spacer-dependent tested APEX fitments
- APEX ARC-8: 18x9 ET30 requires at least 8mm; 18x9.5 ET35 requires at least 6mm
- APEX EC-7: 18x9.5 ET35 requires at least 6mm
- APEX ARC-8RT: 18x9 ET30 requires at least 6mm; 18x9.5 ET35 requires at least 8mm
- APEX ML-10RT: 18x9 ET30 requires at least 6mm; 18x9.5 ET35 requires at least 2mm
Tested APEX combinations that do not clear
- APEX EC-7: 18x9 ET30 and 18x9.5 ET28 - barrel interference
Other wheel brands
At present, only the APEX fitments listed above are treated as confirmed against a physically tested 380mm six-piston conversion.
BBS Motorsport E88 is not currently confirmed. The commonly listed System Motorsports 18x10 ET21 front / 18x11 ET34 rear F8X specification is explicitly marked as not suitable for CCB or 2NH brake packages. Although this 380mm conversion reduces radial brake-package diameter compared with the original 400mm 2NH setup, that does not by itself prove sufficient barrel and caliper clearance. BBS E88 must therefore be checked against the exact 72Racing brake-clearance template or physically test fitted before ordering.
Other 18-inch options from BBS, ProTrack, Volk Racing, BC Forged, Forgeline, Titan 7 and similar manufacturers may be viable, but are not currently advertised as confirmed for this exact 72Racing 380mm / OEM 2NH six-piston caliper position. A wheel being listed for an F87 M2 or clearing another 380mm/372mm brake kit is not sufficient evidence on its own.
Important wheel-fitment note: wheel diameter alone is not enough to establish brake clearance. Inner-barrel profile, drop-centre shape, wheel offset, spacer thickness, suspension position and manufacturing revisions can all change the result. Always test fit before mounting tyres and maintain suitable caliper-to-wheel clearance for track use.
What is included
- 2 x 72Racing front caliper conversion brackets
Brake discs, brake pads, wheels, spacers and fitting are not included unless supplied separately.
Warranty, Shipping and Returns
Products are supplied with the applicable manufacturer warranty. We offer UK and worldwide shipping. Please refer to the live availability information and our shipping and returns policies before ordering.
Finance Options
Klarna payment options are available at checkout where eligible.
Why buy from us?
Why buy from us?
Secure payments
Secure payments
Your payment information is processed securely.
Specifications
- Brand
- 72Racing
- Product type
- Brake Caliper Brackets
- SKU:
- 72R-F87-2NH-380-BRKT
- Vehicle make
- BMW
- Vehicle model
- M2
- Vehicle variant
- F87
